Composite valve with manual proportional flow direction for ship
Proportional flow direction block valve for ship Manual
Marine manual proportional valve - Manual proportional flow directional composite valve - Manual proportional composite valve:
The composite with CSBF type manual proportional flow direction valve is a pressure compensation, flow rate regulation and safety protection of the three position four way reversing valve, synchronous action of CSBF type manual proportional control valve operating handle and the flow adjusting mechanism can be stepless speed, reversing and has good control performance, at the same time with good reliability, convenient operation, long life and other characteristics, the hydraulic system is widely used in ship machinery and other machinery, the product won the national patent.
| model | Nominal dia.(mm) | Nominal flow(L/min) | Nominal pressure(MPa) | Scope of safety valve pressure(MPa) | Handle control force(N) | Mid-position pulley enginery |
| CSBF-G20 | 20 | 120 | 25 | 5～25 | ≤40 | M O Y H K P |
| CSBF-G25 | 25 | 200 |
| CSBF-G32 | 32 | 300 |
| CSBF-G40 | 40 | 450 |
| CSBF-G50 | 50 | 700 |
| CSBF-G65 | 65 | 1200 |
Marine manual proportional directional composite valve CB/T3198-2001 CSBF-G20
Meaning: nominal pressure G--25Mpa, nominal diameter of 20mm, the spool function for the M type of manual proportional flow direction of the ship
Manual proportional directional composite valve CB/T3198-2001 CSBF-O-G25
Meaning: nominal pressure G--25Mpa, nominal diameter of 25mm, the spool function for the O type of manual proportional flow direction of the ship
Manual proportional directional composite valve CB/T3198-2001 CSBF-Y-G32
Meaning: nominal pressure G--25Mpa, nominal diameter of 32mm, the spool function for the Y type of manual proportional flow direction of the ship
Manual proportional directional composite valve CB/T3198-2001 CSBF-H-G40
Meaning: nominal pressure G--25Mpa, nominal diameter of 40mm, the spool function for the H type of manual proportional flow direction of the ship
Manual proportional directional composite valve CB/T3198-2001 CSBF-K-G50
Meaning: nominal pressure G--25Mpa, nominal diameter of 50mm, the spool function for the K type of manual proportional flow direction of the ship
Manual proportional directional composite valve CB/T3198-2001 CSBF-P-G65
Meaning: nominal pressure G--25Mpa, nominal diameter of 65mm, the spool function for the P type of manual proportional flow direction of the ship
Technical requirements of the directional composite valve for manual proportional flow:
1, manual proportional valve of the main parts of the material should be in accordance with the provisions of the following table:
2, the valve body, valve core cylinder should be in accordance with the GB/T1184 in the 7 level of tolerance, surface roughness is not greater than 0.8 m,
3, the valve body and the valve core between the sealing surface should not have scratches, holes, bumps and other defects,
4, O type circle should be consistent with GB3452.1
5, the composite valve should have a good cleanliness, all parts should not have burr, cutting and other casting residues, etc.
6, the composite valve flange for oil import outside the performance level of the screw should not be less than 9.8
|
|

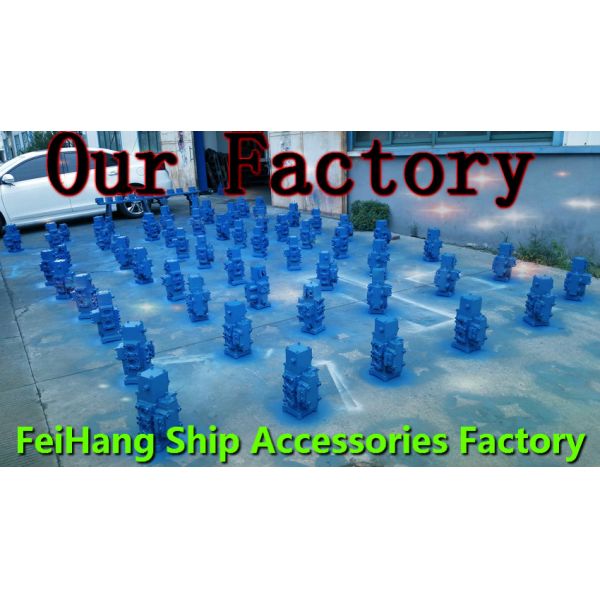

Marine manual proportional valve CSBF Images
|
